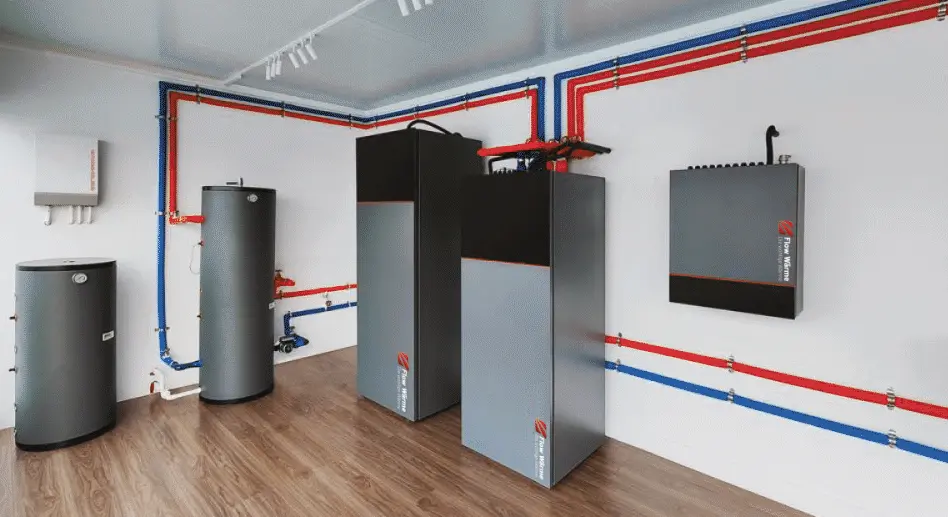

Malena Monobloc
Series R32
The compact monobloc solution for efficient residential heating. Single-unit design, fast installation, no on-site refrigerant handling — with Panasonic EVI compressor for reliable operation down to -25°C ambient temperature.
_eifhylfw.webp)
Product Advantages
The Malena R32 combines compact design with first-class technology — suitable for new builds and retrofits.
Compact Monobloc Design
Everything in one outdoor unit — no separate indoor unit required. Heating, cooling and domestic hot water from one compact unit. Minimal footprint and simplified on-site installation.
Panasonic EVI Twin Rotary
High-quality Panasonic EVI twin-rotary DC inverter compressor for reliable output down to -25°C ambient and water temperatures up to 60°C — without any supplementary heater.
Eco-Friendly R32 Refrigerant
R32 refrigerant with approx. 30% lower GWP than R410A. Significantly reduced environmental footprint with high energy efficiency — A+++/A++ certified.
Smart Colour Screen Controller
Colour touchscreen with clear, intuitive interface. All system parameters at a glance — easy to operate even without technical knowledge.
Integrated Pressure Sensors
Built-in high and low pressure sensors monitor the system in real time. Automatic protection and alarm under abnormal pressure conditions — protects the installation reliably.
Customisable Appearance
Selectable colour and housing options for seamless architectural integration. The calm, modern design blends harmoniously into any building facade — Red Dot Award 2023 winner.
Technical Data
Full specifications for the Malena Monobloc R32 Series (models FW-MB012-1 to FW-MB032-3).
| Refrigerant | R32 (GWP = 675) |
|---|---|
| Type | Monobloc |
| Function | Heating / Cooling / Hot Water, Wi-Fi control |
| Heating Output (A7/W35) | 4.30 – 32.00 kW (across the series) |
| COP (A7/W35) | 3.07 – 7.19 (depending on model) |
| Heating Output (A7/W55) | 3.95 – 29.50 kW |
| Heating Output (A-7/W35) | 2.75 – 23.00 kW |
| Cooling Output (A35/W18) | 4.50 – 27.80 kW |
| EER (A35/W18) | 3.39 – 4.74 |
| Cooling Output (A35/W7) | 3.30 – 23.36 kW |
| Energy Efficiency Class | A+++/A++ (35°C/55°C) |
| Compressor | Panasonic EVI Twin Rotary DC Inverter |
| Fan Type | DC motor fan, horizontal |
| Sound Power Level | 58 – 70 dB(A) |
| Heating Operating Range | -25°C to +43°C ambient |
| Cooling Operating Range | +15°C to +45°C ambient |
| Max. Power Input | 4.80 – 17.90 kW |
| Max. Input Current | 13.40 – 28.00 A |
| Inverter Circulation Pump | Included |
| Power Supply (Single-phase) | 220–240 V / 1 / 50 Hz |
| Power Supply (Three-phase) | 380–415 V / 3 / 50 Hz |
| Models (Single-phase) | FW-MB012-1, FW-MB016-1, FW-MB020-1 |
| Models (Three-phase) | FW-MB012-3, FW-MB016-3, FW-MB020-3, FW-MB024-3, FW-MB032-3 |
| Dimensions (W×D×H) | 1030×520×367 mm (12 series) to 1285×515×1600 mm (32 series) |
| Certifications | CE, ErP |
| Award | Red Dot Design Award 2023 |
