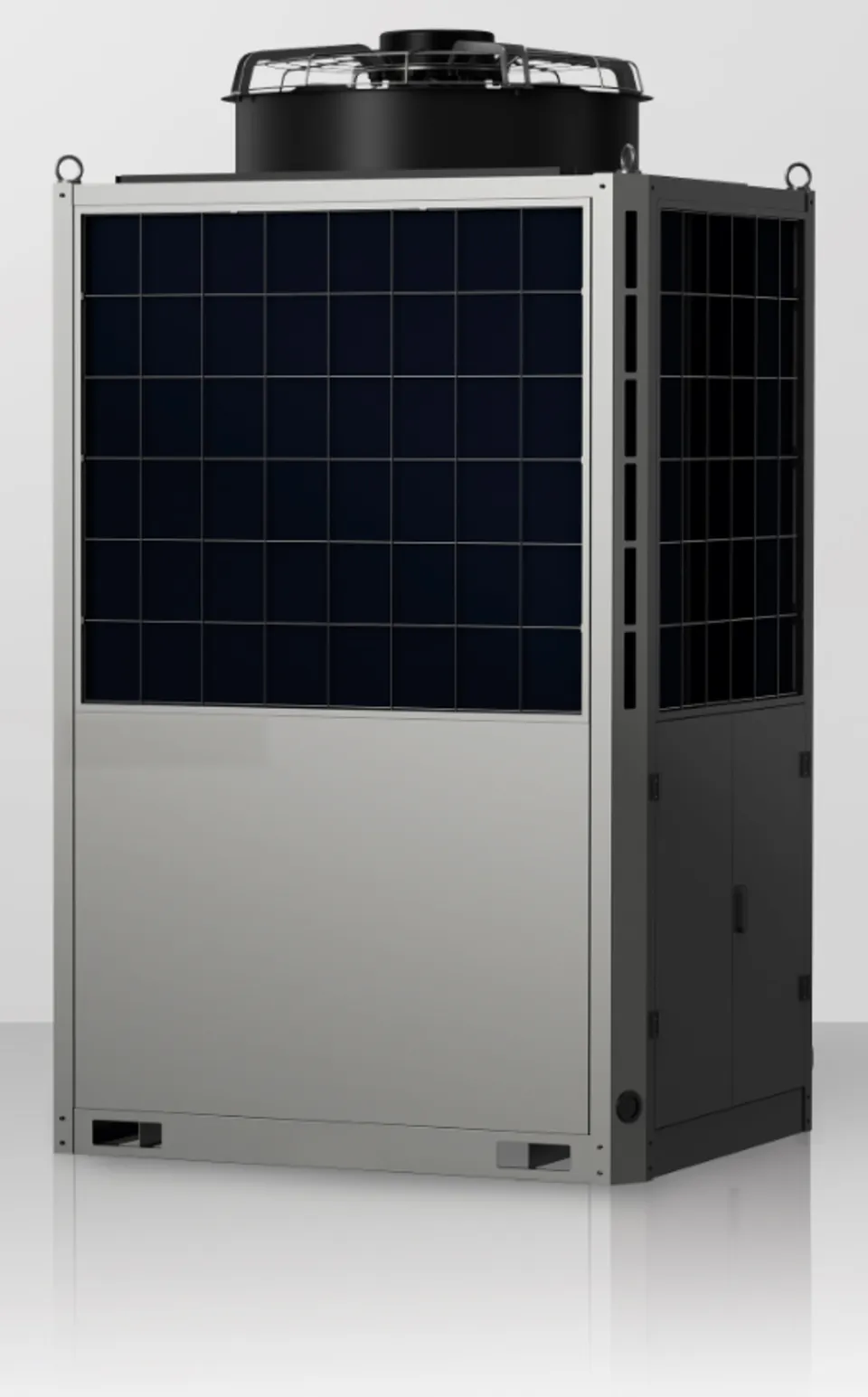

Chillers R32
High-capacity chillers from Flow Wärme for commercial and industrial HVAC applications. Scalable capacity from 34 to 140 kW heating and 29 to 130 kW cooling — with Full Inverter technology, precise temperature control and 7-inch colour touchscreen.
Product Advantages
The Chillers R32 — DualTherm B Range delivers commercial-grade quality with state-of-the-art Full Inverter technology.
Automatic Defrost Technology
Advanced defrost technology optimises the defrost cycle, reduces energy consumption and ensures continuous operation down to -15°C — for efficiency and long-term operational reliability.
Modular Design
Innovative modular approach for minimal footprint, simplified logistics and easy scalability. Multiple units can be run in parallel for larger capacity requirements.
High-Efficiency EC Fan
High-efficiency EC fans optimise airflow and heat dissipation. Focused on durability — maximum energy efficiency without any compromise on reliability.
Twin Rotary Compressor
Fully hermetic construction for robust longevity, minimal vibration — purpose-built for high-volume commercial and industrial applications with continuous full-load operation.
SWEP Plate Heat Exchanger
High-performance SWEP plate heat exchanger increases heat transfer efficiency, minimises pressure loss and ensures stable operation under variable load conditions.
7-Inch Touchscreen & Wi-Fi
Intuitive 7-inch colour controller for convenient on-site operation. Wi-Fi integration for seamless remote monitoring and control — maximum transparency for facility managers.
Eco-Friendly R32 Refrigerant
R32 delivers a Global Warming Potential (GWP) one-third that of traditional R410A — significantly reducing environmental footprint while maintaining high efficiency and excellent performance.
Wide Operating Range
Exceptional flexibility across diverse applications: water heating temperature range 8–55°C, water cooling temperature range 10–35°C — reliable performance in a wide array of environmental conditions.
Modular Scalability

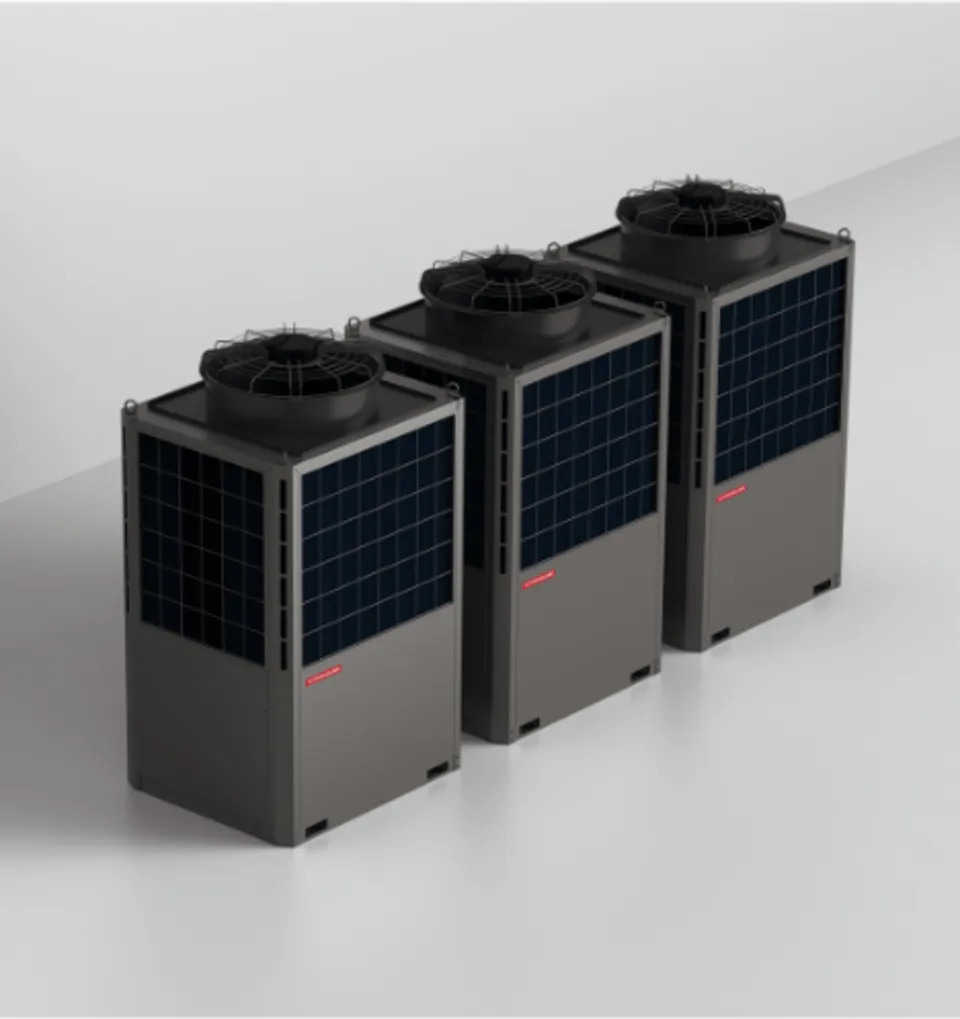

Multiple units can be run in parallel — capacity grows with your project.
Flexible · Scalable · Efficient
The innovative modular design not only minimises footprint but also simplifies logistics and installation. A flexible solution that scales effortlessly as your demand grows.
- Combine multiple units in parallel
- Compact footprint per kW of capacity
- Future expansion without system overhaul
- Simplified servicing thanks to identical modules
Quiet Operation

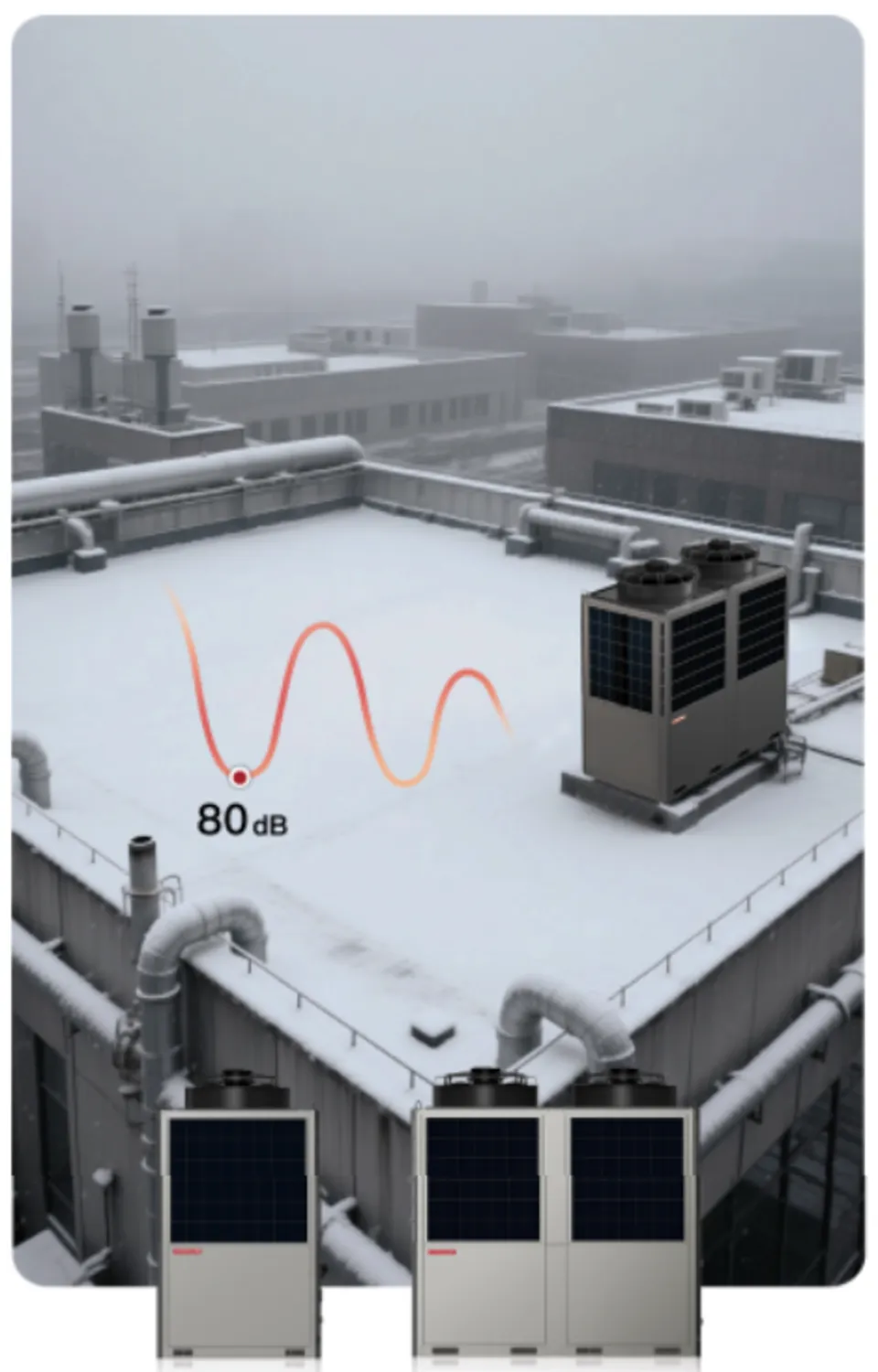

Even under full load the Chillers R32 stay pleasantly quiet at 70–80 dB(A) — ideal for rooftop installations in urban settings.
Comfort for People and Surroundings
High-efficiency EC fans combined with the fully hermetic Twin Rotary compressor deliver minimal vibration and a smooth operating profile — even on exposed rooftops or in close proximity to offices and residential areas.
- 70 dB(A) @1m for the FW-70CHIL
- 80 dB(A) @1m for the FW-140CHIL at full load
- EC fan technology for smooth, even airflow
- Suitable for rooftop and outdoor installation
Technical Data
Full specifications for the Chillers R32 — DualTherm B Range (models FW-70CHIL and FW-140CHIL).
| Models | FW-70CHIL / FW-140CHIL |
|---|---|
| Function | Cooling & Heating |
| Refrigerant | R32 |
| Technology | Full Inverter / Wi-Fi included |
| Control | 7-inch colour touchscreen |
| Operating Range (Ambient) | -15°C to +45°C |
| Power Supply | 380–415 V / 3N~ / 50 Hz |
| Water Temp. (Heating) | 8°C – 55°C |
| Water Temp. (Cooling) | 10°C – 35°C |
| Energy Efficiency Class (35/55°C) | A+++/A++ (FW-70CHIL) / A++/A++ (FW-140CHIL) |
| Refrigerant Charge | 5200×2 g (FW-70CHIL) / 5200×4 g (FW-140CHIL) |
| Heating (7°CDB/6°CWB, Water 40/45°C — EN 14511) | |
| Heating Output | 34.59 – 71.30 kW (FW-70CHIL) / 67.50 – 140.00 kW (FW-140CHIL) |
| Heating Power Input | 10.12 – 21.61 kW / 18.93 – 42.40 kW |
| COP (W/W) | 3.30 – 3.42 / 3.30 – 3.57 |
| Cooling (35°CDB/24°CWB, Water 12/7°C — EN 14511) | |
| Cooling Output | 29.02 – 65.80 kW (FW-70CHIL) / 59.60 – 130.50 kW (FW-140CHIL) |
| Cooling Power Input | 8.93 – 22.69 kW / 17.60 – 43.90 kW |
| EER (W/W) | 2.90 – 3.25 / 2.97 – 3.39 |
| Electrical Data & Dimensions | |
| Operating Pressure (High/Low) | 4.5 / 1.6 MPa |
| Max. Power Input | 30 kW (FW-70CHIL) / 61.2 kW (FW-140CHIL) |
| Max. Current | 48 A (FW-70CHIL) / 98 A (FW-140CHIL) |
| Sound Level @1m | 70 dB(A) (FW-70CHIL) / 80 dB(A) (FW-140CHIL) |
| Compressor | Twin Rotary |
| Fan | EC fan (1× FW-70CHIL / 2× FW-140CHIL) |
| Advised Water Flow | ≥11 m³/h (FW-70CHIL) / ≥22 m³/h (FW-140CHIL) |
| Dimensions (L×W×H) | 1253×1075×2250 mm / 2210×1100×2250 mm |
| Packaging (L×W×H) | 1325×1145×2395 mm / 2280×1170×2395 mm |
| Net Weight | 445 kg (FW-70CHIL) / 819 kg (FW-140CHIL) |
| CO₂ Equivalent | 7.02 TON (FW-70CHIL) / 14.04 TON (FW-140CHIL) |
| Load Capacity (40HQ) | 18 pcs (FW-70CHIL) / 10 pcs (FW-140CHIL) |

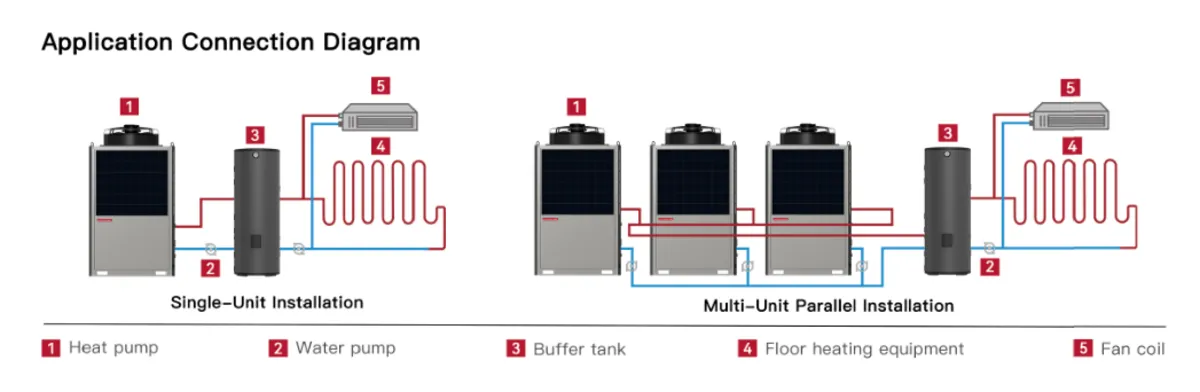

Connection Diagram
Single and parallel installation for flexible project requirements.
